Sensor+ Module

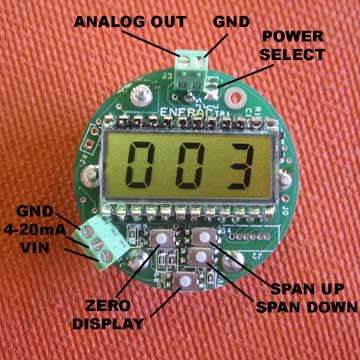

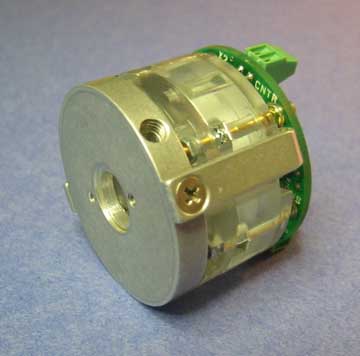

ENERAC's SENSORPACK+ MODULES offer continous monitoring of Carbon Monoxide (CO), Nitric Oxide (NO), Oxygen (O₂), or Sulfur Dioxide (SO₂). They consist of a standard electrochemical cell sandwiched between an amplifier board and a diffusion cap. The amplifier board displays the gas concentration on a small LCD display.

• For CO, NO, or SO₂, the sensor range is 0 - 2000 PPM.
• For O₂, the range is 0 - 25 %.

Modules can be powered externally from a 4-60 VDC supply, or on-board lithium coin battery. The module is also compatible with bus-powered, "4-20mA Loop" systems.
The diffusion cap allows for both ambient monitoring and, with the addition of a pump, remote monitoring.
The electrochemical cell has a typical life span of two years, and can be easily replaced. Miniature switches allow easy zeroing and span calibration of the module.

For more information, Email us or Call us at 800-695-3637
