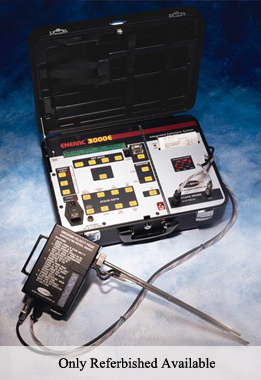

Enerac 3000E SEM

---

Documented Quality Assured Performance:

The ENERAC Model 3000E is the most advanced and accurate electrochemical emissions analyzer ever produced. With its range of automatic QA/QC capabilities, the Enerac 3000E provides accurate, documented, defensible data for compliance monitoring purposes, e.g. NSR, Title V Periodic Monitoring, CAM Plan Development, Emission Trading, PAL, Audits, etc.



Enerac 3000E-3IR SEM uses state-of-the-art infrared technology to accurately measure CO, CO₂, & hydrocarbons.



The Enerac 3000E series:

• Meets All the Performance Specifications of EPA's Test Method for the Determination of Nitric Oxide, Nitrogen Dioxide, and NOx Emissions from Stationary Combustion Sources by Electrochemical Analyzer, CTM-022. (Performance Specifications are Equivalent to Method 7E)
• Meets All the Performance Specifications of EPA's Method 2, Determination of Stack Gas Velocity and Volumetric Flow Rate (Type S Pitot Tube), 40 CFR 60 Appendix A.
• Important QA/QC Capabilities Are Always Available to Insure Accurate, Documented, Defensible Data. They Include:
  • Automatic Calibration Certification Protocol Tests and Documents Proper Sensor and Interference Rejection Filter Performance before each test
  • Replaceable Interference Rejection Filters to Insure Specificity

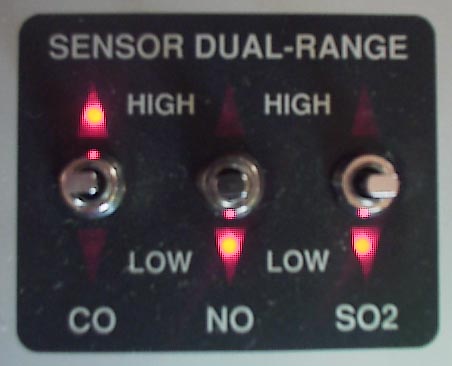

  • Dual Range Sensors to Adjust a Sensor's Sensitivity Range to Accommodate Different Measurement Ranges (NO: 5 - 5000 PPM)
  • Auto Temperature Control System for the NO Sensor
• Integrated Capabilities Provide Mass Emissions Data
• Advanced Communications and Data Management:
  • Two Way Communications Bring Factory Assistance to Your Site
  • Automatically Calculates lb/mmbtu, gr/Bk-hp-hr; O₂ reference adjustment, lbs/hr., tons/year for (CO₂)
  • Enercom for Windows Software Captures, Stores and Graphs Data in a Variety of Common Formats for Direct Use by Major PC Programs
• Enerac's Comprehensive Field and Factory Training



Enhanced Integrated Sample Conditioning System

This is a unique battery operated permeation dryer conditioning system. It has been shown to remove excess water vapor without any loss to the nitrogen dioxide and sulfur dioxide components of the stack gases.



Electrochemical SEM^TM Sensors

These are the most advanced electrochemical sensors specifically designed for emisisons measurements. SEM sensors are available for the measuremenst of nitric oxide, nitrogen dioxide, carbon monoxide and sulfur dioxide components of the stack gases.
